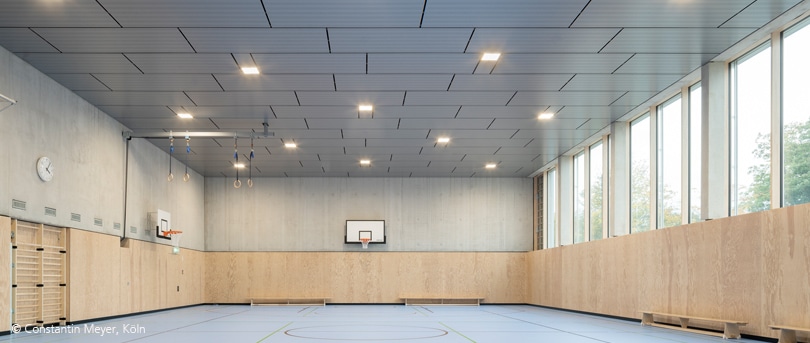

Shot resistant sports hall ceilings

Ceiling constructions must not only meet the sound insulation requirements, but also be tested for ball impact resistance according to DIN 18032-3 and for shock resistance according to EN 13964-D. Thanks to the panels‘ extremely rigid structure, deformations by ball shots are almost impossible. The Metawell® ceiling may, as an option, also provide the heating of the hall. The copper pipe tubes mounted on the back side of the ceiling convert the acoustic ceiling into an acoustic and radiant ceiling.

Advantages of Metawell® sports hall ceilings

Heating sports halls using radiant ceiling heating has many advantages over conventional solutions:

  • Meets requirements for ball impact resistance acc. to DIN 18032-3 & impact resistance DIN EN 13964-D

  • Complies with sound absorption requirements
  • Large-scale aluminium sandwich panel up to 1480 x 6000 mm
  • Weight incl. meander only max. 14 kg/m²
  • Mountable with countersunk head screws on all standard rails for dry construction
  • The screw heads remain visible, though they become indistinct between the perforation
  • Optional copper pipe covering possible
  • Because of the sandwich structure an extrem even design is visible
  • Smooth and flat ceiling structure with a sealed cavity
  • Dirt cannot settle down
  • Balls cannot get stuck behind the ceiling
  • Better hygienic quality of the hall air
  • More attractive appearance of the sports hall
  • EPDs (Environmental Product Declarations) according to DIN EN ISO 14025 Type III and EN 15804


The installation of the ceiling is quite simple and is carried out using standard CD rails and drywall screws – special and expensive substructures are not required. A coarse and fine grid construction is mounted to the ceiling. The coarse grid has a spacing of 900 mm. The spacing of the fine grid depends on the width of the ceiling panels. If the width is 1480 mm, three fine grids must be provided per panel; in each case on the panel longitudinal edges and in the centre of the panel. The spacing is 700 mm.

The perforated ceiling panels have a pre-drilled 2 mm hole instead of a 6 mm perforation hole at the points where the drywall screws have to be set – which clearly determines the positioning of the screws. The screw head diameter of 5.9 mm is very similar to a perforation hole, so the attachment is hardly noticeable from the floor. In our example the gap between the panels is 10 mm. All edge panels are supplied with over dimension. The excess material has to be cut off by the customer during assembly. This allows to level out tolerances of the building and to create a uniform shadow gap towards the walls.

Schematic sketches

According to the building regulations of the federal states, certain standard or minimum dimensions are recommended for the dimensions of sports halls. For a single gym, the dimensions are 15 x 27 m, the minimum room height is 5.5 m. A double gym can be 22 x 44 m in size, with a height of at least 7 m. A triple hall has the dimensions 27 x 45 m and also a minimum height of 7 m. The principle of all 3 variants can be found in our schematic sketches.


On basis of the building physics data of the sports hall, the heating load of the hall is calculated by the planner, whereby the room height has a great influence on the temperature distribution.

Room acoustics & reverberation time of the ceiling elements

In order to ensure the speech intelligibility during training lessons and to keep the noise disturbance for athletes, trainer and audience low, room acoustic measurements are undertaken. Subject to the kind of room use and the space volume the reverberation period in sports halls should amount to 1,4 to 2,5 sec. and in multi-purpose halls even to 1,1 to 4,4 sec. DIN EN 18032 explicitly requests the planning of room acoustics:

  • speech intelligibility in the single and in particular multiple sporting activities
  • speech communication possibilities of the athletes among themselves
  • Speech intelligibility when using a PA system in sports halls with audience
  • Noise and therefore stress-free sports

Therefore room acoustics is one of the fundamental planning tasks when designing a sports hall. A corresponding acoustic equipment has to be provided.

Sustainable and energy efficient

Metawell® sports hall ceiling elements consist out of an aluminium carrier panel with copper pipes. Both materials are excellent heat conductors. Therefore the Metawell® sports hall ceilings respond extremely fast and achieve high performance values. When the ceilings are not used anymore they can be recycled without additional preparation. Furthermore EPDs (Environmental Product Declarations) according to DIN EN ISO 14025 Type III and EN 15804 are offered.
