Advantages of Metawell® acoustic ceiling sails

  • Metawell® acoustic elements are suitable for all rooms where the reverberation time impairs speech intelligibility

  • the aluminium sandwich structure warrants high rigidity with an elegant and filigree appearance. With only 6 mm of visible edge, the element is very thin, but at the same time so rigid that the suspension ropes can be arranged far in the centre of the panel and are therefore barely visible

  • with the included suspension ropes, the sail can be mounted in no time

  • material properties help the sail to be extremely light weight with high stability

  • easy and fast installation

  • can also be mounted under sloping ceilings

  • cutouts and additional attachments are possible

  • different geometries

  • the sail is delivered with a high-quality coilcoated surface in the colour RAL 9010 (pure white). If renovation is required after years, the element can be easily covered, the acoustic values are still preserved. Even repeated overcoating is possible without loss of performance.

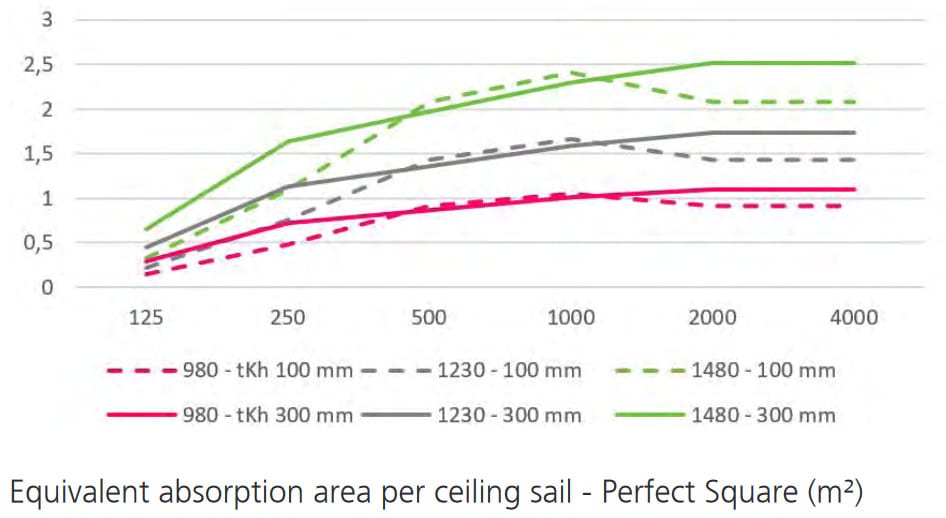

Acoustic Sail perfect squared Equivalent Absortio Area per m2
Acoustic Sail basic squared Equivalent Absortio Area per m2

Acoustic Sail Perfect Square

Dimension Weight Absorption surface SAP number
1480 x 1480 mm 9.3 kg 2.08 m² 350 000 80
1230 x 1230 mm 6.6 kg 1.44 m² 350 000 79
980 x 980 mm 4.4 kg 0.91 m² 350 000 78

Acoustic Sail Basic Square

Dimension Weight Absorption surface SAP number
1480 x 1480 mm 10.2 kg 1.75 m² 350 000 77
1230 x 1230 mm 7.2 kg 1.21 m² 350 000 76
980 x 980 mm 4.8 kg 0.77 m² 350 000 75

Technical Details

Acoustic Sail Perfect Square

  • mitred edges
  • panel edge – visible side turned up 6 mm
  • panel height 6.0 mm
  • structure height 30 mm (incl. C-profile, without suspension)
  • suspension height 200 – 1200 mm (with rope hanger)
  • colour RAL 9010 (pure white)
  • perforation X6x8
  • acoustic fleece and melamine foam
  • hole proportion 22.1%
  • light reflection 66%
  • noise absorption αw 95%
  • absorption class A

Acoustic Sail Basic Square

  • panel edge – visible side turned up 6 mm
  • panel height 6.0 mm
  • structure height 30 mm (incl. C-profile, without suspension)
  • suspension height 200 – 1200 mm (with rope hanger)
  • colour RAL 9010 (pure white)
  • perforation Q6x16
  • acoustic fleece black
  • hole proportion 11%
  • light reflection 76%
  • noise absorption αw 80%
  • absorption class B
